Industrial buildings were engineered before fluorescent tubes existed: tall, multi-pane Crittall or timber sash windows were sized so daylight could reach workbenches ten metres from the street. When we convert these deep footprints into homes and drop a new mezzanine ceiling into the middle of the room, we risk severing the very light path that makes the loft worth living in.
The geometry of the window setback
As a rule of thumb in daylight modelling, unobstructed sky light penetrates laterally into a room to a depth of roughly 1.5 to 2 times the head height of the window. A window rising to 3.8 metres throws bright, usable ambient light nearly 7 metres back. The moment you attach a mezzanine floor directly to the window mullion at 2.2 metres height, the lower room’s effective daylight depth drops to barely 3.5 metres.
Pulling the leading edge of the mezzanine back by at least 2.4 to 3.0 metres from the exterior glazing preserves a double-height lightwell right at the facade. High-angle midday light drops straight down onto the living floor, while low-angle morning or afternoon sun sweeps across the upper deck.
“Never let a new floor touch an old window unless that window is wide enough to share its sky equally with both rooms.”
— Daylight & Fenestration Notes

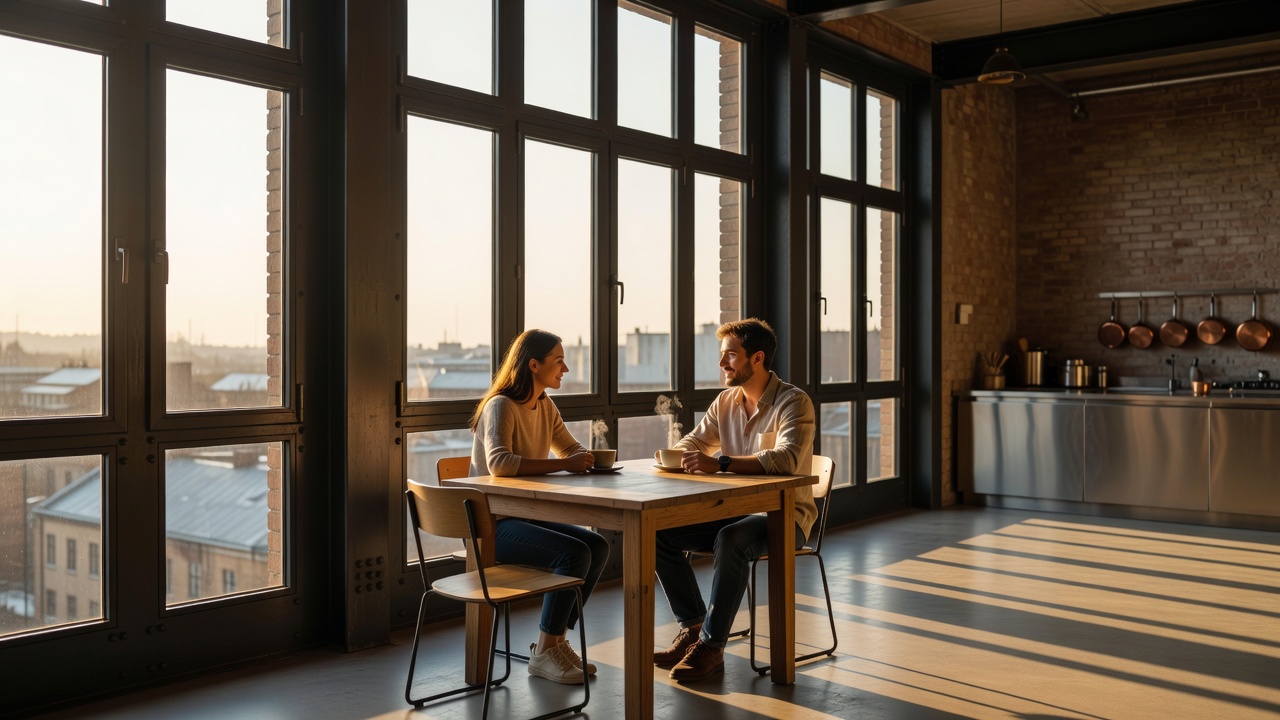

A generous double-height buffer at the window wall keeps the dining table bathed in direct sky light while bouncing diffuse warmth into the kitchen behind.
Walk-on floor glass and borrowed light shafts
Where floor area is tight and the mezzanine must extend closer to the perimeter, replacing strategic bays of timber decking with structural walk-on glass restores vertical light flow. Specify triple-laminated toughened panels (typically three 10 mm or 12 mm plies bonded with PVB or structural ionoplast interlayers) featuring a ceramic frit or sandblasted anti-slip border.
An acid-etched or matte translucent interlayer serves two purposes at once: it prevents anyone downstairs from looking up under skirts or pyjamas, and it scatters harsh direct sunbeams into a soft, lantern-like glow over the kitchen island or hallway below.
LRV
Light Reflectance Value (LRV) of the mezzanine soffit
Painting or lime-washing the underside of the mezzanine deck in a warm chalk or sand tone (LRV 75–82) bounces up to three times more secondary light into the back of the plan than raw dark-stained timber (LRV 18–25).
When enclosing a bathroom or quiet study at the rear of the loft, run solid walls up to 2.1 metres for visual privacy and glaze the top 600 mm with reeded or clear acoustic glass so the ceiling plane reads continuously.
Layered evening lighting for double-height volumes
After dusk, a single row of recessed downlights in a four-metre ceiling creates harsh, theatrical pools on the floor while leaving the upper walls dark and cavernous. Divide your electrical circuits by altitude:
High architectural wash: Aim warm-dimming (2700K to 2200K) linear grazers or uplights across brick piers and timber roof trusses so the room’s volume glows softly without glare.
Under-deck task warmth: Conceal high-CRI (CRI 95+) LED extrusions inside joinery rebates and use low-hung linen or spun-brass pendants over the dining table to anchor human-scale intimacy.
Two-way stair switching: Fit low-glare 1-watt step markers at ankle height along the stair stringer, wired to two-way switches at both the bedhead and lower hall.
